I. Product Overview

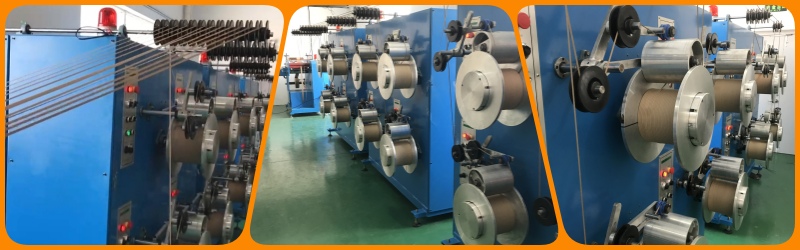

Automatic Paper Strapping Production Machine is a high-efficiency production system specially developed for manufacturing Paper Strapping. The machine integrates material unwinding, slitting, tension control and winding processes to efficiently produce paper strapping with different widths and specifications, providing an environmentally friendly packaging solution for logistics, packaging and printing industries.

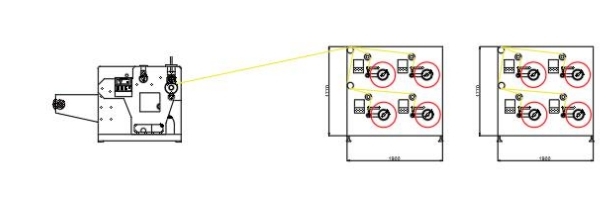

II. Product Composition
1 Slitting Machine
1. Unwinding shaft: 3-inch tile-type air-expanding shaft is used, together with a 40KG magnetic powder tension control system. The unwinding tension can be freely adjusted according to different production requirements.
2. Correction system: The machine is equipped with an ultrasonic correction device to improve the feeding accuracy and ensure stable material movement.
3. Measuring mode: Meter mode is used to conveniently control and monitor the production length.

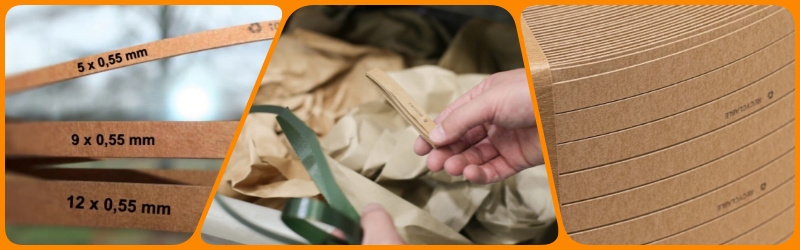

4. Slitting tool configuration: 9mm*12 strips, 12mm*12 strips, 15mm*12 strips, 1 set for each specification.
3 Workstation Winders
1. Bandwidth selection is completed through the touch screen, and the operator does not need to manually adjust or replace the transmission gear.
2. After the preset winding process is completed, the machine automatically stops, allowing the operator to replace the paper tube manually.
3. The winding tension can be adjusted through the touch screen. Different winding torques can be selected according to the weight and width of the paper strapping to reduce bending deformation after winding.
4. After winding, the finished paper strapping needs to be manually removed and a new paper tube installed for the next production cycle.
III. Product Features
High efficiency: The automatic production system integrates multiple production processes, reducing manual intervention and improving overall production efficiency.
Environmental protection: The production line uses paper-based raw materials to produce recyclable paper strapping, helping reduce the use of traditional plastic packaging materials.
Flexible production: Different paper strapping widths, lengths and production parameters can be selected according to customer requirements, providing flexible production solutions.
Reliable operation: The production line adopts a stable control system and high-quality components to ensure reliable operation and consistent production quality.
Ⅳ. Application field
Automatic Paper Strapping Production Machine is widely used in logistics, packaging, printing, carton manufacturing and other industries. The paper strapping produced by this machine can be used to bundle cartons, paper products, pallets and various packaged goods, providing reliable fixation during transportation and storage.
Ⅴ. Market trend
With the continuous development of sustainable packaging and the increasing demand for recyclable materials, paper strapping is attracting more attention from packaging manufacturers and end users. Its paper-based composition makes it suitable for applications where environmentally friendly packaging solutions are required. As an important production equipment for paper strapping, Automatic Paper Strapping Production Machine is expected to have increasing applications in logistics, packaging, printing and other industries.
